射頻探針
Model 35 (dc to 26.0 GHz, 1.25 Megohm/0.05pF)


  • Model 35 (dc to 26.0 GHz, 1.25 Megohm/0.05pF) ;
  • 有源探針,需要電源驅動;
  • 針尖可替換。


  • 規格參數
  • 資料下載

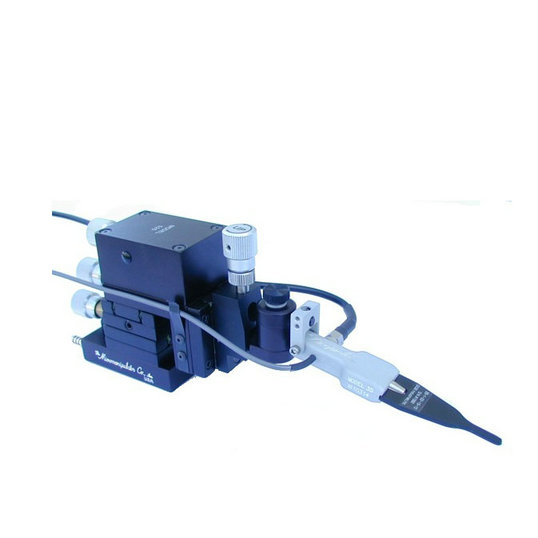

Model   35

(dc to 26.0 GHz, 1.25 Megohm/0.05pF)



mod35-mmb


(Can be mounted on any micropositioner for use with any probing system)



The Picoprobe Model 35 has been engineered to meet the stringent demands of advanced high frequency circuit designers. This probe combines full DC capability, rise/fall times of 14 ps, and a nominal loading input impedance of 1.25 megohms shunted by 0.05 pf. Signal attenuation is 10:1 with a 50 ohm oscilloscope input. Like our other active probes, the Model 35 achieves its bandwidth using just one probe point, which greatly simplifies internal node testing without sacrificing performance. An assortment of user replaceable probe tips are available for a variety of probing needs. The Model 35 is powered by our new PS-3 power supply.


Specifications

Model 35

Input Capacitance

0.05pF

Input Resistance

1.25 megohms

Rise/Fall Time

14 ps (3V pulse or less)

Frequency Response

dc to 26GHz

Operating Range

-6 to +6V

Linearity

2% (+/-3V)

Signal Attenuation

10 to 1 (50ohm input)

FIGURE 2


Picoprobe Model 35

Part
Number

Tungsten Probing Wire
Shaft Diameter

Point Radius

35-1-5

5 micron

<0.1 micron

35-1-10

10 micron

<0.1 micron

35-1-22

22 micron

<1.0 micron

35-1-35

35 micron

<2.0 micron


FIGURE 3



* Requires the use of a Model 35 Picoprobe錕?? Power Supply, part # PS-3. Please specify 110V or 220V when ordering.


20ps_2_f


FIGURE 4


This plot shows the response of the Model 35 Picoprobe to a 0.25 volt, 25 picosecond rise time input pulse. Both the input pulse (Channel 2) and the Model 35 response (Channel 1) are displayed simultaneously on a dual channel 20 GHz sampling oscilloscope. The Model 35 probe tip was contacted to a 50 ohm impedance strip line that carried the input signal. The Model 35 used only a single contact and did not require a short ground connection
